From point cloud to FE model

Steps of the Cloud2FEM pipeline on a masonry vault.

Images from the Cloud2FEM workflow, from point-cloud processing to finite-element modelling.

Cloud2FEM demonstration

This video shows the Cloud2FEM workflow for generating a structural model from survey data.

San Felice Fortress animation

This Cloud2FEM animation shows the model of the San Felice Fortress.

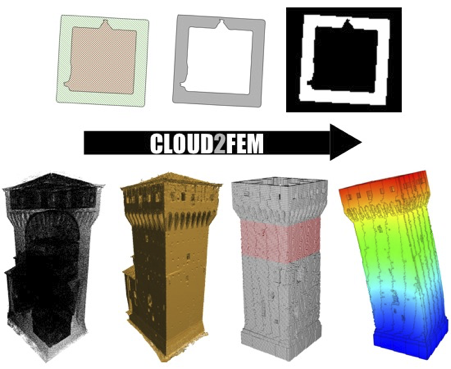

Cloud2FEM workflow, from geometric processing to finite-element models.

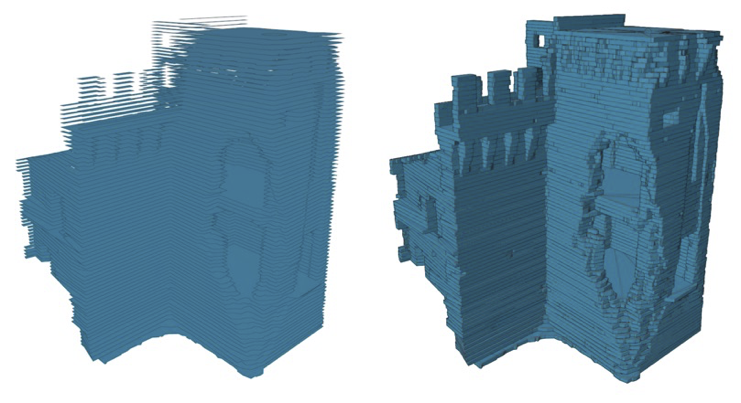

Point-cloud slicing and reconstruction of a masonry structure.

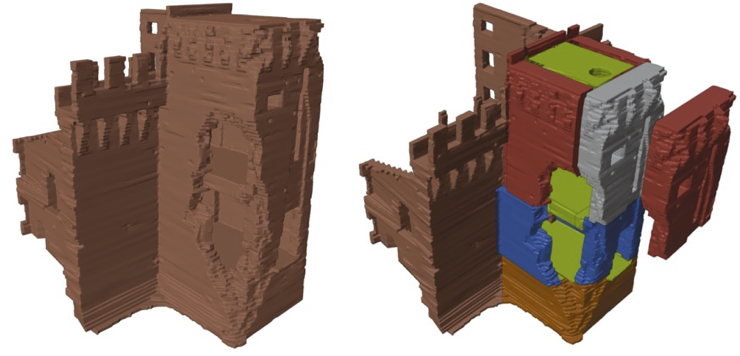

Segmentation of the reconstructed masonry structure into components.

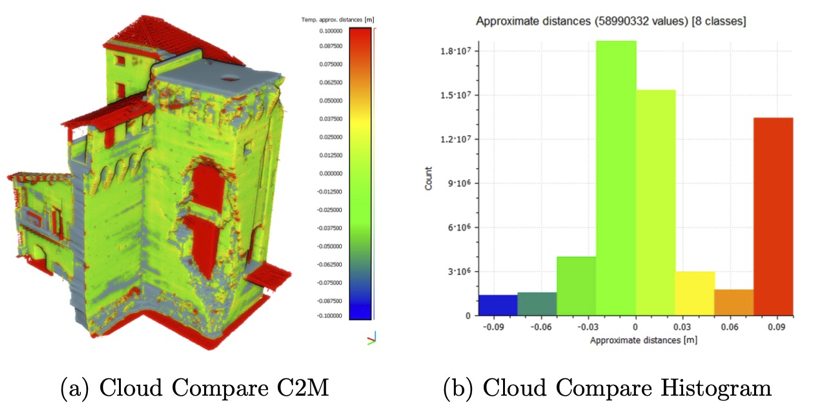

Cloud-to-mesh distance map and histogram for geometric validation.
