Import VTK Plugin

The Import VTK Plugin loads datasets in VTK/VTU format directly into the viewer.

VTK Plugin

Features

  • Support for .vtk and .vtu files.
  • Import point clouds, meshes, and unstructured grids.
  • Automatic placement in the dataset tree.

Usage

  1. Click the toolbar button VTK Icon.
  2. Select one or more VTK files.
  3. The datasets appear in the Tree Inspector.

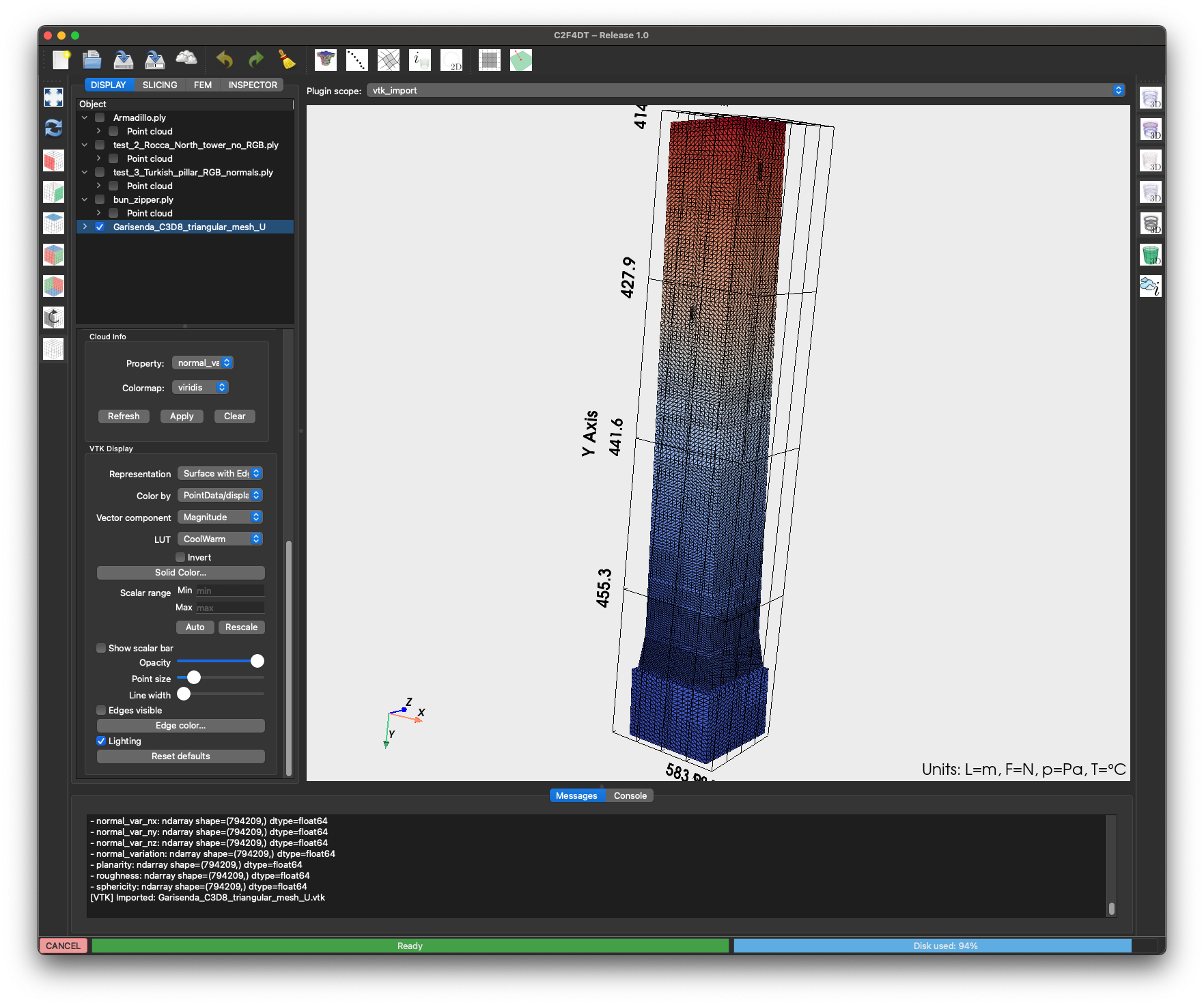

  4. Visualize and interact with the data in 3D.

Options

  • Multi-file import: load several VTK datasets in one action.
  • Dataset labeling: files are shown with their filename by default.
  • Compatibility: works with PyVista and VTK formats.
